Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
-
Highlight
Low pressure Reverse osmosis membrane
,Industrial equipment Reverse osmosis membrane
,Pure water Reverse osmosis membrane
-
Model4-inch Film 4040 8-inch Film 8040
-
Filter Membrane TypeReverse Osmosis (RO) Membrane
-
Applicable ObjectsWater
-
PurposeWater Filtration
-
Thickness0.01（mm）
-
Filtering MethodOutside-in
-
Filtering Accuracy0.001μm
-
Place of OriginHenan, China
-
Brand NameQRZ
-
CertificationISO9001
-
Model Number4040/8040
-
Minimum Order Quantity1
-
Price¥1200-¥3000
-
Packaging DetailsRegular packaging
-
Delivery Time1-2weeks
-
Payment TermsD/P, T/T
-
Supply Ability100 units/day
Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
Advanced 4040 RO Membrane Cell for Seawater Desalination and Brackish Water Treatment
Company Profile
Product Description
Brief Introduction of 4040 RO Membrane Element
ME-4040FR Reverse Osmosis Membrane Element is a type of fouling resistant membrane manufactured by our company. With good quality and competitive price, ME-4040FR membrane module is ideal replacement international famous brands.
Try before buy. Free sample is available for your test. The clients can place trial order for 3~6 months test. We are confident of the performance of ME-4040 membrane elements.
Product Structure
4040 RO Fouling Resistant Reverse Osmosis Element Structure

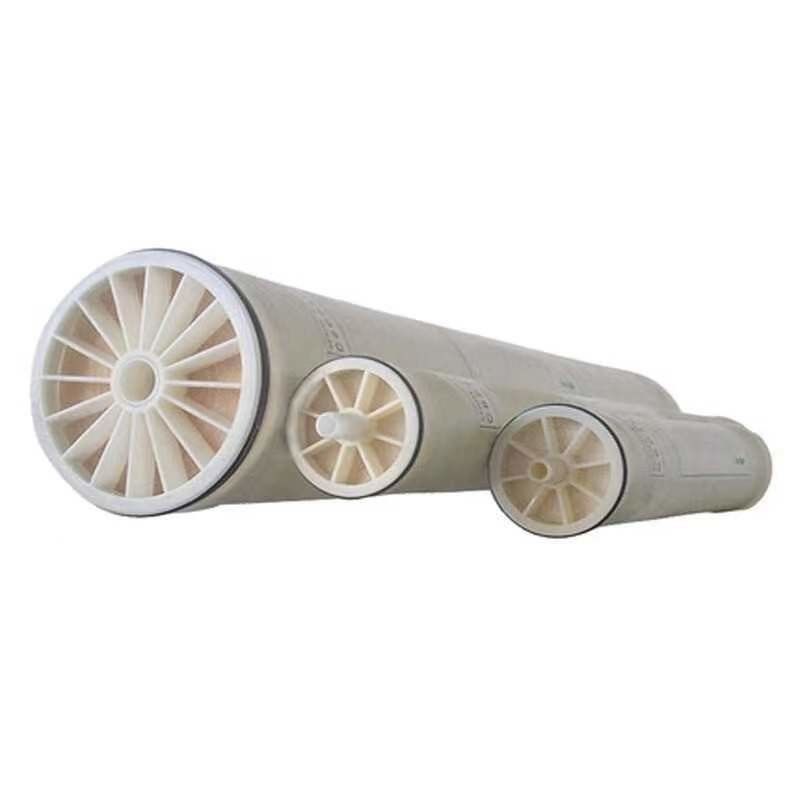

4040 RO membrane Element is mainly consisting of membrane housing--a kind of pressure vessel made of FRP or stainless steel; spiral would membrane film, connector, seals and the like.
Specification
|
Key Performance
|
Model
|
ME-4040FR
|
ME-4040HR
|
ME-4040SW
|
|
|
Permeate Flow Rate
|
2,200 GPD (8.3 m³/d)
|
2,200 GPD (8.3 m³/d)
|
1,600 GPD (6.1m³/d)
|
|
|
Stable Salt Rejection
|
90 square feet (8.4 ㎡)
|
90 square feet (8.4 ㎡)
|
95 square feet (8.8 ㎡)
|
|
|
Effective Membrane Area
|
90 square feet (8.4 ㎡)
|
90 square feet (8.4 ㎡)
|
95 square feet (8.8 ㎡)
|
|
|
Feed Spacer Width
|
34mil
|
28mil
|
28mil
|
|
Test Condition
|
Test Pressure
|
225psi (1.55MPa)
|
225psi (1.55MPa)
|
800psi (5.52MPa)
|
|
|
Test Solution
|
2000mg/L NaCl
|
2000mg/L NaCl
|
32000mg/L NaCl
|
|
|
Test Temperature
|
25℃ (77℉)
|
25℃ (77℉)
|
25℃ (77℉)
|
|
|
PH
|
7.0±0.5
|
7.0±0.5
|
8
|
|
|
Recovery Rate
|
15%
|
15%
|
8%
|
|
Operation Condition
|
Max. Operation Pressure
|
600psi (4.14MPa)
|
600psi (4.14MPa)
|
1200psi (8.28MPa)
|
|
|
Max. Feed Rate
|
16 GPM ( 3.6m³/h )
|
16 GPM ( 3.6m³/h )
|
16 GPM ( 3.6m³/h )
|
|
|
Max. Feed Water Temperature
|
45℃(113℉
|
45℃(113℉
|
45℃(113℉
|
|
|
Max. Feed Water SDI
|
5
|
5
|
5
|
|
|
Free Chlorine
|
＜0.1mg/L
|
＜0.1mg/L
|
＜0.1mg/L
|
|
|
Max. Pressure Drop
|
15psi (0.1MPa) for single membrane module
|
15psi (0.1MPa) for single membrane module
|
15psi (0.1MPa) for single membrane module
|
|
|
Cleaning PH
|
1~13
|
1~13
|
1~13
|
|
|
Operation PH
|
2~11
|
2~11
|
2~11
|
Main Application
* Drinking and potable water purification
* Seawater Desalination
* Brackish Water Desalination
* Boiler Replenishment Water Treatment
* Water Reuse
* Concentration of value-added solution in beverage and pharmaceutical
* Seawater Desalination
* Brackish Water Desalination
* Boiler Replenishment Water Treatment
* Water Reuse
* Concentration of value-added solution in beverage and pharmaceutical
Packing & Delivery
Generally, package of ME-4040 membrane elements are packed in paper box or cartoon for container shippment
FAQ
1. HOW TO SELECT MEMBRANE TYPE?
i) Check the model and size of your membrane module to be replaced;
ii)Consult our engineer for free.
2. DO YOU OFFER OEM or ODM?
i) Check the model and size of your membrane module to be replaced;
ii)Consult our engineer for free.
2. DO YOU OFFER OEM or ODM?
Yes, we are a manufacturer offer customized design and manufacture.
3. DO YOU HAVE MINIMAL ORDER QUANTITY?
Yes. Typically MOQ is 1 pcs.
4. HOW ABOUT THE CERTIFICATES?
3. DO YOU HAVE MINIMAL ORDER QUANTITY?
Yes. Typically MOQ is 1 pcs.
4. HOW ABOUT THE CERTIFICATES?
Quality certificate and test report are available.
5. HOW ABOUT YOUR AFTER-SALE SERVICE?
5. HOW ABOUT YOUR AFTER-SALE SERVICE?
7x24 hot line services.
